DOCUS 1.0 LED

Private Residence NL

DOCUS 1.0 LED

146364W9

Elektronik

LED
PAR16

Farbe

Mattweiß

Farbtemperatur

2700 K
3000 K
colour warm dimming

Steuerung

DALI
Phasenschnitt dim

Artikelnummer

146364W9
186358W9

Listenpreis

213,80 €

incl 20% VAT

Optisches Zubehör erhältlich

product-availability-check

product-availability

cart.amount

product-availability-error

product-detail.description

product-details.downloads
product-details.accessories
Konfigurator

product-detail.downloads
product-detail.description
product-detail.specifications

DOCUS 1.0 LED 0
DOCUS 1.0 LED - Einzel-Innenabdeckung gold 0
DOCUS 1.0 LED - Einzel-Innenabdeckung schwarz 0
DOCUS 1.0 LED - Einzel-Innenabdeckung weiß 0

asset.usage.cad-2d [967 KB]
asset.usage.cad-3ds-low-poly [50 KB]
asset.usage.cad-dwg-low-poly [105 KB]
asset.usage.colorfidelityplot [64 KB]
asset.usage.colorvectorgraphic [324 KB]
asset.usage.diagram-cone [11 KB]
asset.usage.diagram-ldc [11 KB]
asset.usage.drawing [533 KB]
asset.usage.ies [6 KB]
asset.usage.ldt_product [4 KB]
asset.usage.product [184 KB]
asset.usage.rolf [41 KB]
asset.usage.spectraldataplot [46 KB]
asset.usage.generated-datasheet [1 MB]
asset.usage.spec [de] [923 B]

asset.usage.diagram-cone [11 KB]
asset.usage.diagram-ldc [17 KB]
asset.usage.ies [6 KB]
asset.usage.ldt_product [4 KB]
asset.usage.product [246 KB]
asset.usage.rolf [47 KB]
asset.usage.generated-datasheet [1 MB]
asset.usage.spec [de] [839 B]

asset.usage.diagram-cone [11 KB]
asset.usage.diagram-ldc [17 KB]
asset.usage.drawing [124 KB]
asset.usage.ies [6 KB]
asset.usage.ldt_product [4 KB]
asset.usage.product [179 KB]
asset.usage.rolf [47 KB]
asset.usage.generated-datasheet [1 MB]
asset.usage.spec [de] [845 B]

asset.usage.diagram-cone [11 KB]
asset.usage.diagram-ldc [17 KB]
asset.usage.ies [6 KB]
asset.usage.ldt_product [4 KB]
asset.usage.product [146 KB]
asset.usage.rolf [44 KB]
asset.usage.generated-datasheet [1 MB]
asset.usage.spec [de] [841 B]

DOCUS 1.0 LED

product-detail.drawing

product.group.general

product.attribute.scope

Innen

product.attribute.mounting

Decke

product.attribute.fixation

Aufbau

product.attribute.color

Mattweiß

product.attribute.ral colur code

RAL 9010

product.attribute.variante

LED

product.attribute.ip rating

IP20

product.group.led

product.attribute.color temperature

colour warm dimming

product.attribute.lumen maintenance

L70 / 50000 h

product.group.optical

product.attribute.product.description.beamangle

Standard

product.group.electrical

product.attribute.control

Phasenschnitt dim

product.attribute.voltage

220 - 240 V

product.attribute.luminous flux

385 lm

product.attribute.power

7,9 W

product.attribute.safety class

Klasse 1

product.group.physical

product.attribute.height

92 mm

product.attribute.length

90 mm

product.attribute.width

90 mm

product.attribute.weight

0,63 kg

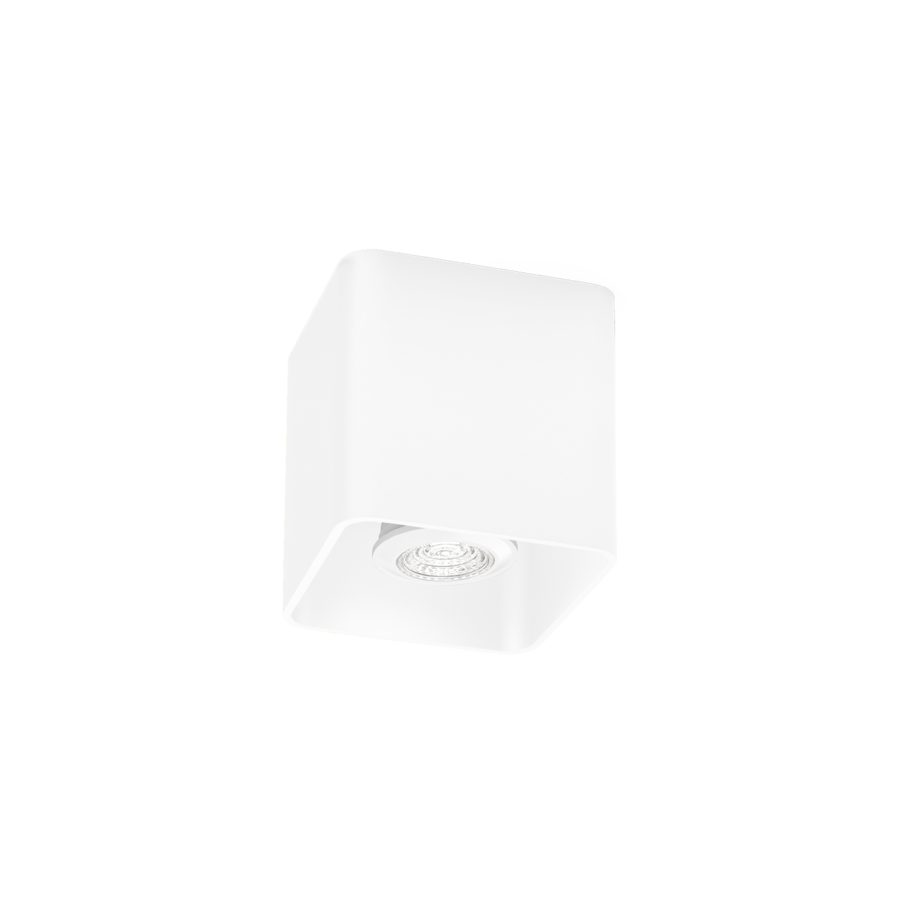

Quadratisches Deckenanbaudownlight aus Aluminiumdruckguss; abgerundete Kanten; Oberfläche Mattweiß; pulverbeschichtet; matte Oberflächenstruktur; RAL 9010; mit COB (Chip on Board) Technologie für höchste Effizienz; Phasenschnitt dim; Lichtfarbe 1800 K - 2850 K colour warm dimming; binning initial MacAdam ≤ 4 SDCM; CRI ≥ 95; 220 - 240 V; Schutzart IP20; Klasse 1; UGR ≤ 13; bildschirmtaugliche Arbeitsplatzleuchte nach DIN EN 12464-1; Leuchtdichte über 65° ≤ 1500 cd/m²; optional einzelne Innenabdeckung erhältlich;

Allgemein: Decke, Aufbau, Mattweiß, RAL 9010, IP20, Innen, 385 lm, CIE flux code: 95 99 100 100 100

LED: colour warm dimming, 1800 K - 2850 K, CRI ≥ 95, L70 / 50000 h, initial MacAdam ≤ 4 SDCM

Optisch: Standard, Ausstrahlwinkel 32°

Elektrisch: Phasenschnitt dim, 220 - 240 V, System 7.9 W, Klasse 1

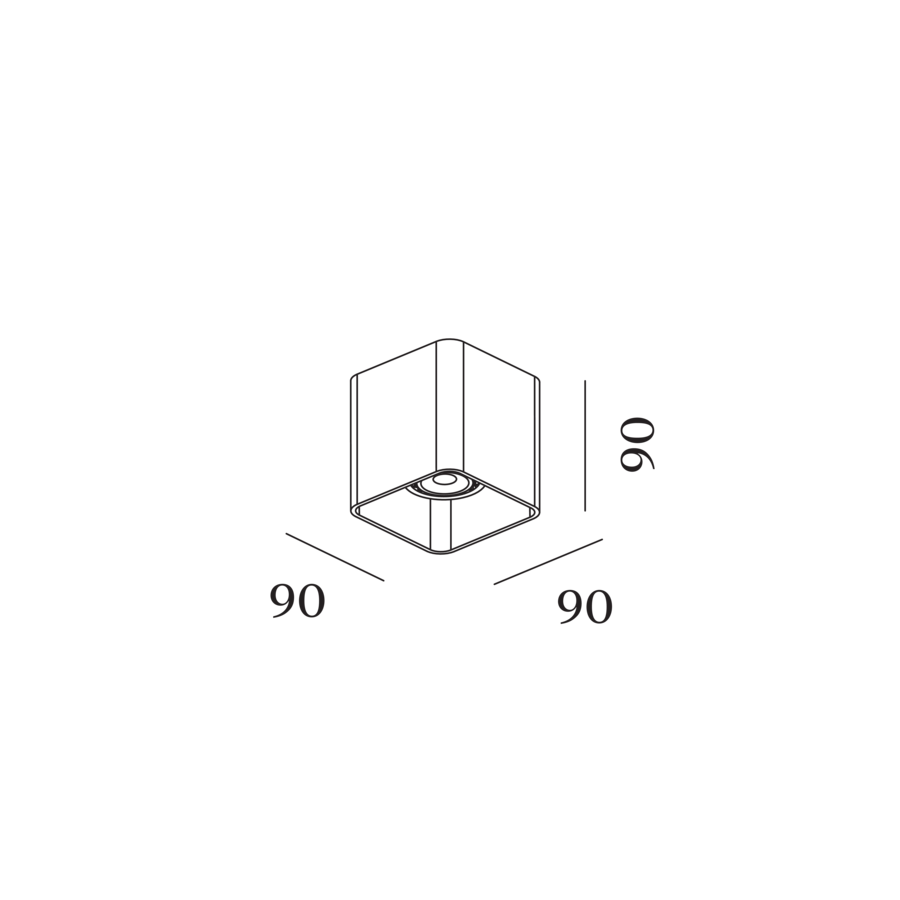

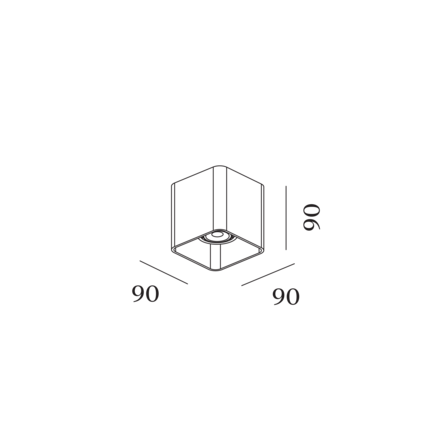

Abmessungen: Länge 90 mm, Breite 90 mm, Höhe 92 mm, 0.63 kg
