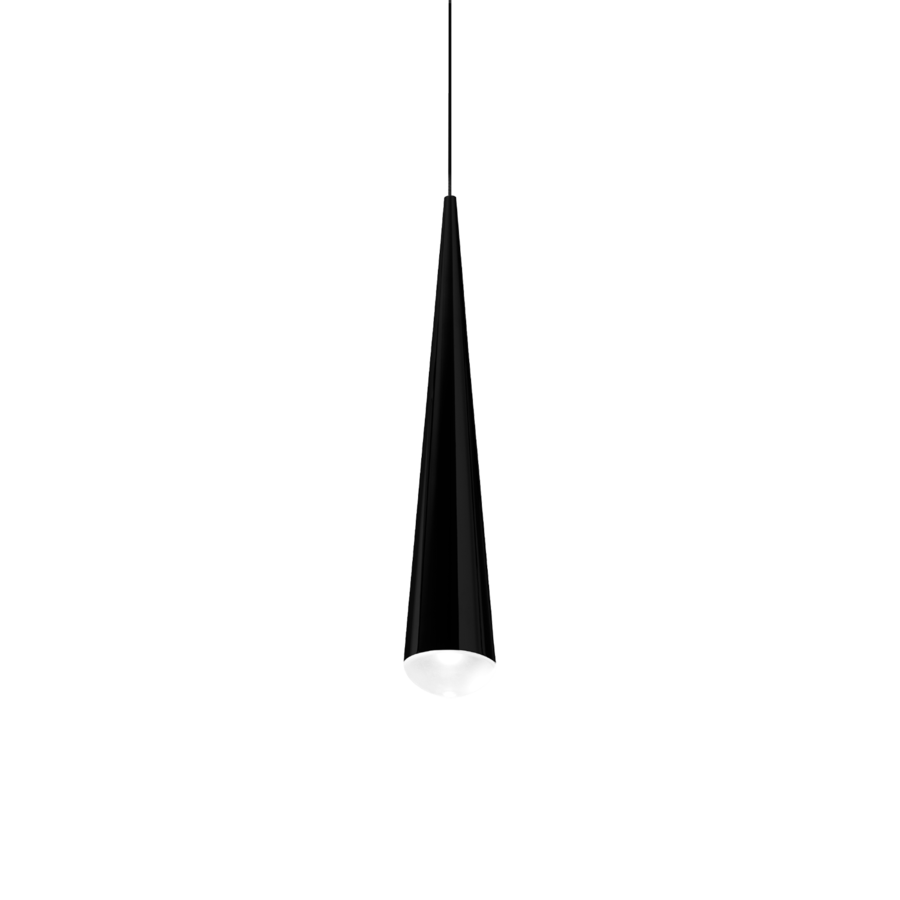

CONE 1.0

200184B3
Colour
Black Matt
Colour Temperature

Availability Check
Availability
Drawing
Drawing

General

Scope
Interior
Mounting
Ceiling
Fixation
Suspended
Product colour
Black Matt
RAL colour code
RAL 9005
Type
LED
IP Rating
IP20

LED

Light Colour
2700 K
LED lifetime
L80 / 100000 h

Optical

Beam angle
Standard

Technical Details

Control
phase-cut dim
Voltage
220 - 240 V
Luminous flux
405 lm
Total power
7.7 W
Safety class
Class 1

Physical

Height
265 mm
Diameter
45 mm
Weight
0.55 kg

Replaceability

Cone shaped ceiling suspended luminaire made from aluminium; surface Black Matt; powder coated; matt texture; RAL 9005; inclusive adjustable cable suspension max. 2200mm in Signal Black; PCB 3-step binning; phase-cut dim; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; 220 - 240 V; degree of protection IP20; Class 1; driver included; light source not replaceable; control gear replaceable by end-user;
General: Ceiling, Suspended, Black Matt, RAL 9005, IP20, Interior, 405 lm, CIE flux code: 79 90 97 95 100
LED: 2700 K, CRI ≥ 90, L80 / 100000 h, initial MacAdam ≤ 3 SDCM
Optical: Standard, beam angle 38°
Electrical: phase-cut dim, 220 - 240 V, system 7.7 W, Class 1
Physical: diameter 45 mm, height 265 mm, 0.55 kg, cable length2200 mm
