DOCUS 2.0 LED

186458P3

Electronic

LED
PAR16

Colour

Copper

Colour Temperature

2700 K
3000 K
colour warm dimming

Beam Angle

21° Standard
32° Standard

Listprice

348,80 €

incl 20% VAT

Optical accessories available

product-availability-check

product-availability

cart.amount

product-availability-error

product-detail.description

product-details.downloads
product-details.accessories
Configurator

product-detail.downloads
product-detail.description
product-detail.specifications

DOCUS 2.0 LED 0
DOCUS 2.0 LED - 2 x single inner cover black 0
DOCUS 2.0 LED - 2 x single inner cover gold 0
DOCUS 2.0 LED - 2 x single inner cover white 0

asset.usage.cad-2d [967 KB]
asset.usage.cad-3ds-low-poly [38 KB]
asset.usage.cad-dwg-low-poly [70 KB]
asset.usage.cataloguepages [245 KB]
asset.usage.colorfidelityplot [64 KB]
asset.usage.colorvectorgraphic [325 KB]
asset.usage.drawing [531 KB]
asset.usage.mounting-instruction [1 MB]
asset.usage.product [404 KB]
asset.usage.spectraldataplot [44 KB]
asset.usage.generated-datasheet [1 MB]
asset.usage.spec [en] [909 B]

asset.usage.product [366 KB]
asset.usage.generated-datasheet [1 MB]
asset.usage.spec [en] [933 B]

asset.usage.product [431 KB]
asset.usage.generated-datasheet [1 MB]
asset.usage.spec [en] [827 B]

asset.usage.drawing [130 KB]
asset.usage.product [344 KB]
asset.usage.generated-datasheet [1 MB]
asset.usage.spec [en] [828 B]

DOCUS 2.0 LED

product-detail.drawing

product.group.general

product.attribute.scope

Interior

product.attribute.mounting

Ceiling

product.attribute.fixation

Surface

product.attribute.color

Copper

product.attribute.variante

LED

product.attribute.ip rating

IP20

product.group.led

product.attribute.color temperature

2700 K

product.group.optical

product.attribute.product.description.beamangle

Standard

product.group.electrical

product.attribute.control

phase-cut dim

product.attribute.voltage

220 - 240 V

product.attribute.luminous flux

1,340 lm

product.attribute.power

16 W

product.attribute.safety class

Class 1

product.group.physical

product.attribute.height

90 mm

product.attribute.length

174 mm

product.attribute.width

90 mm

product.attribute.weight

0.92 kg

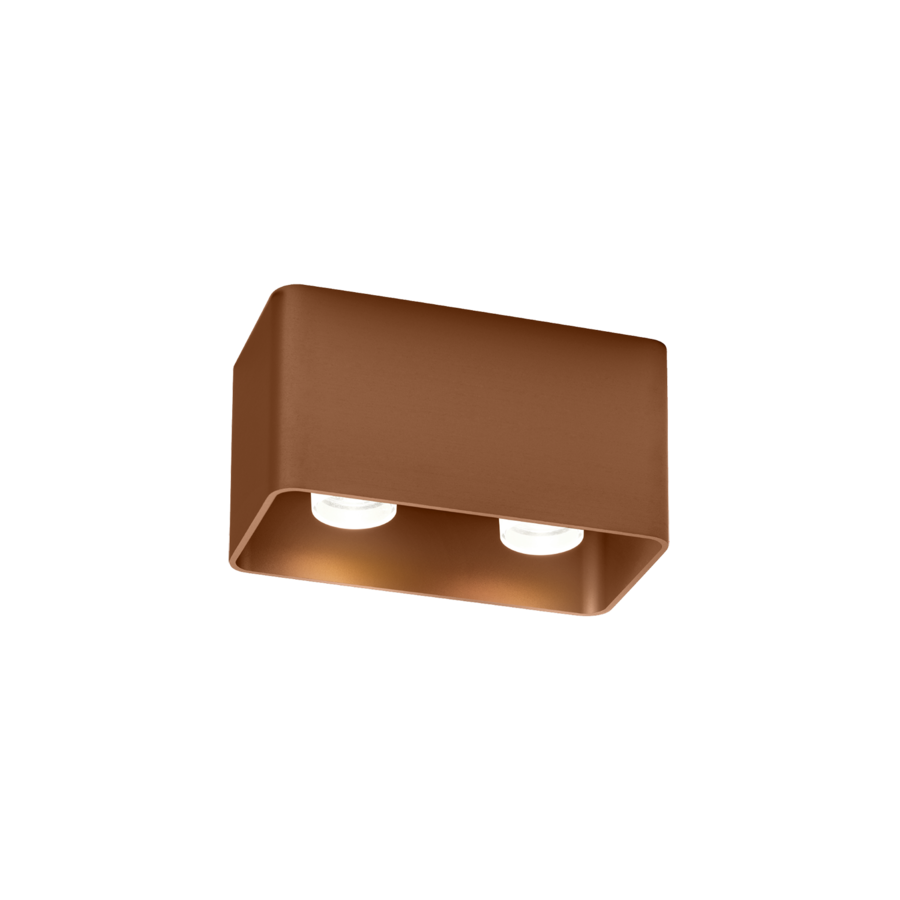

Rectangular ceiling surface mounted downlight made from die-cast aluminium; rounded edges; surface Copper; wet painted; brushed; with COB (Chip on Board) technology for maximum efficiency; phase-cut dim; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; 220 - 240 V; degree of protection IP20; Class 1; UGR ≤ 13; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 1500 cd/m²; optional single inner cover available; light source replaceable by Wever & Ducré or by a professional with explicit authorization;

General: Ceiling, Surface, Copper, IP20, Interior, 1340 lm, CIE flux code: 95 99 100 100 100

LED: 2700 K, CRI ≥ 90, L70 / 50000h, initial MacAdam ≤ 3 SDCM

Optical: Standard, beam angle 21°

Electrical: phase-cut dim, 220 - 240 V, system 16.0 W, Class 1

Physical: length 174 mm, width 90 mm, height 90 mm, 0.92 kg
