Private Residence HausR
Private Residence HausR
product-detail.example-image ORIS 0.7
ORIS OUTDOOR 0.8
ORIS OUTDOOR 0.8
ORIS OUTDOOR 0.8 Black Matt
ORIS OUTDOOR 0.8 Black Matt
ORIS OUTDOOR 0.8
ORIS OUTDOOR 0.8
ORIS OUTDOOR 0.8 White Matt
ORIS OUTDOOR 0.8 White Matt
ORIS OUTDOOR 0.8
ORIS OUTDOOR 0.8

ORIS OUTDOOR 0.8

7094A1A5
Colour
Anthracite Grey
Colour Temperature

Complete article with driver from accessory section
Optional recessed housing incl. plasterkit, concrete housing available

product-availability-check
product-availability
product-detail.drawing
ORIS OUTDOOR 0.8
product-detail.drawing

product.group.general

product.attribute.scope
Exterior
product.attribute.mounting
Wall
product.attribute.fixation
Recessed
product.attribute.color
Anthracite Grey
product.attribute.ral colur code
RAL 7016
product.attribute.variante
LED
product.attribute.ip rating
IP65

product.group.led

product.attribute.color temperature
3000 K
product.attribute.lumen maintenance
L70 / 60000h

product.group.optical

product.attribute.product.description.beamangle
Asymetric

product.group.electrical

product.attribute.control
excl. driver
product.attribute.voltage
6 V
product.attribute.required converter current
350 mA, 700 mA
product.attribute.luminous flux
44 lm, 75 lm
product.attribute.power
2.7 W, 5.7 W
product.attribute.safety class
Class 3

product.group.physical

product.attribute.height
80 mm
product.attribute.length
80 mm
product.attribute.width
33 mm
product.attribute.weight
0.16 kg

product.group.cutout

product.attribute.cutout length
66 mm
product.attribute.cutout width
66 mm
product.attribute.min. wall thickness
12 mm
product.attribute.recessed depth
40 mm

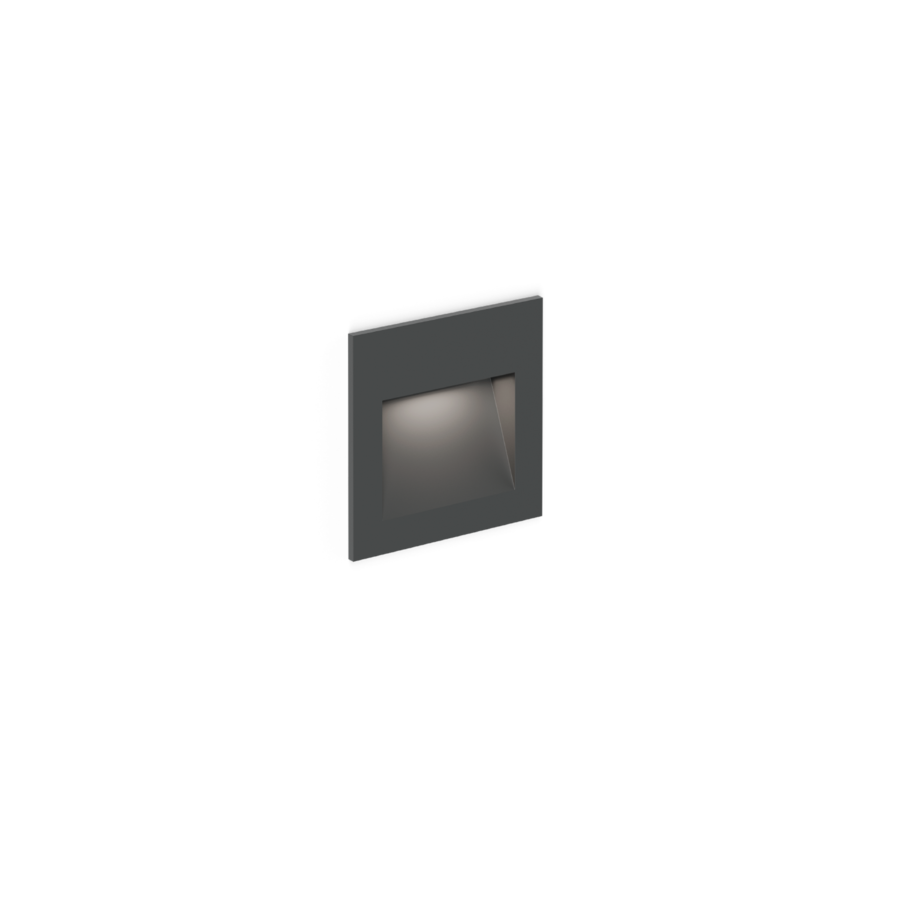

Rectangular wall recessed luminaire made from aluminium; surface Anthracite Grey; powder coated; matt texture; RAL 7016; recessed depth 40 mm; suitable for ceiling thickness of min. 12 mm; PCB 3-step binning; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; degree of protection IP65; Class 3; driver not included; light source not replaceable;
General: Wall, Recessed, Anthracite Grey, RAL 7016, IP65, Exterior, 75 | 44 lm, CIE flux code: 41 77 91 85 100
LED: 3000 K, CRI ≥ 90, L70 / 60000h, initial MacAdam ≤ 3 SDCM
Optical: Asymetric
Electrical: excl. driver, 6 V, inset 4.3 | 2.0 W, Class 3, 700 | 350 mA
Physical: length 80 mm, width 33 mm, height 80 mm, 0.16 kg
Cutout: length 66 mm, width 66 mm, min. ceiling thickness 12 mm, recessed depth 40 mm

product.accessories

product.accessories-subtitle

Driver

3W | 350 mA | 3-15V | IP66

Concrete Housing

ORIS 0.8 | RETO 0.8
ORIS+RETO CONCRETE HOUSING

Recessed Housing incl. plasterkit

ORIS 0.8 | RETO 0.8
ORIS+RETO CONCRETE HOUSING

Driver

3W | 350 mA | 3-15V | IP66

Driver

7W | 500mA | 5-14.5V | IP67

Driver

7W | 700mA | 3-10.5V | IP67
