Private Residence Kuchl
Private Residence Kuchl
Example picture STRANGE 2.7
STRANGE trimless 1.7
STRANGE trimless 1.7
STRANGE trimless 1.7
STRANGE trimless 1.7

STRANGE trimless 1.7

3207A1W2
Colour
White Matt
Colour Temperature
List price
157,20 €
incl 20% VAT

Complete article with driver from accessory section

Availability Check
Availability
Drawing
STRANGE 1.7

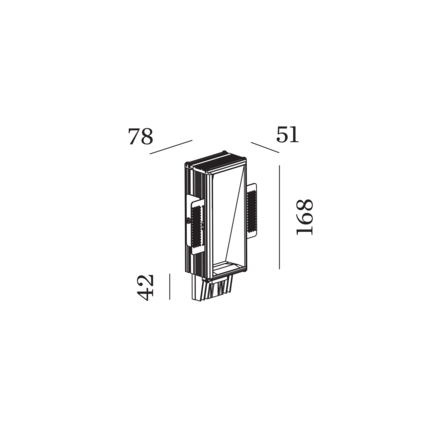

Drawing

General

Scope
Interior
Mounting
Wall
Fixation
Recessed
Product colour
White Matt
RAL colour code
RAL 9003
Type
LED
IP Rating
IP20

LED

Light Colour
2700 K
LED lifetime
L80 / 100000 h

Optical

Beam angle
Asymetric

Technical Details

Control
excl. driver
Voltage
6 V
Converter current
500 mA, 700 mA
Luminous flux
235 lm, 310 lm
Total power
3.9 W, 5.6 W
Safety class
Class 3

Physical

Height
168 mm
Length
78 mm
Width
51 mm
Weight
0.24 kg

Cutout

Length
86 mm
Width
170 mm
Min. ceiling thickness
2 mm
Max. ceiling thickness
25 mm
Recessed Depth
55 mm

Replaceability

Rectangular wall recessed luminaire made from aluminium; surface White Matt; powder coated; matt texture; RAL 9003; recessed depth 55 mm; suitable for ceiling thickness of 2-25 mm; PCB 3-step binning; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; degree of protection IP20; Class 3; driver not included; light source not replaceable;
General: Wall, Recessed, White Matt, RAL 9003, IP20, Interior, 310 | 235 lm, CIE flux code: 31 60 81 73 100
LED: 2700 K, CRI ≥ 80, L80 / 100000 h, initial MacAdam ≤ 3 SDCM
Optical: Asymetric
Electrical: excl. driver, 6 V, inset 4.2 | 2.9 W, Class 3, 700 | 500 mA
Physical: length 78 mm, width 51 mm, height 168 mm, 0.24 kg
Cutout: length 86 mm, width 170 mm, min. ceiling thickness 2 mm, max. ceiling thickness 25 mm, recessed depth 55 mm

Accessories

The right Accessories

Driver

6W | 700mA | 3-8.4V

Driver

6W | 500mA | 3-12V

Driver

6W | 700mA | 3-8.4V
